Energy Monitors¶
¶
.png)

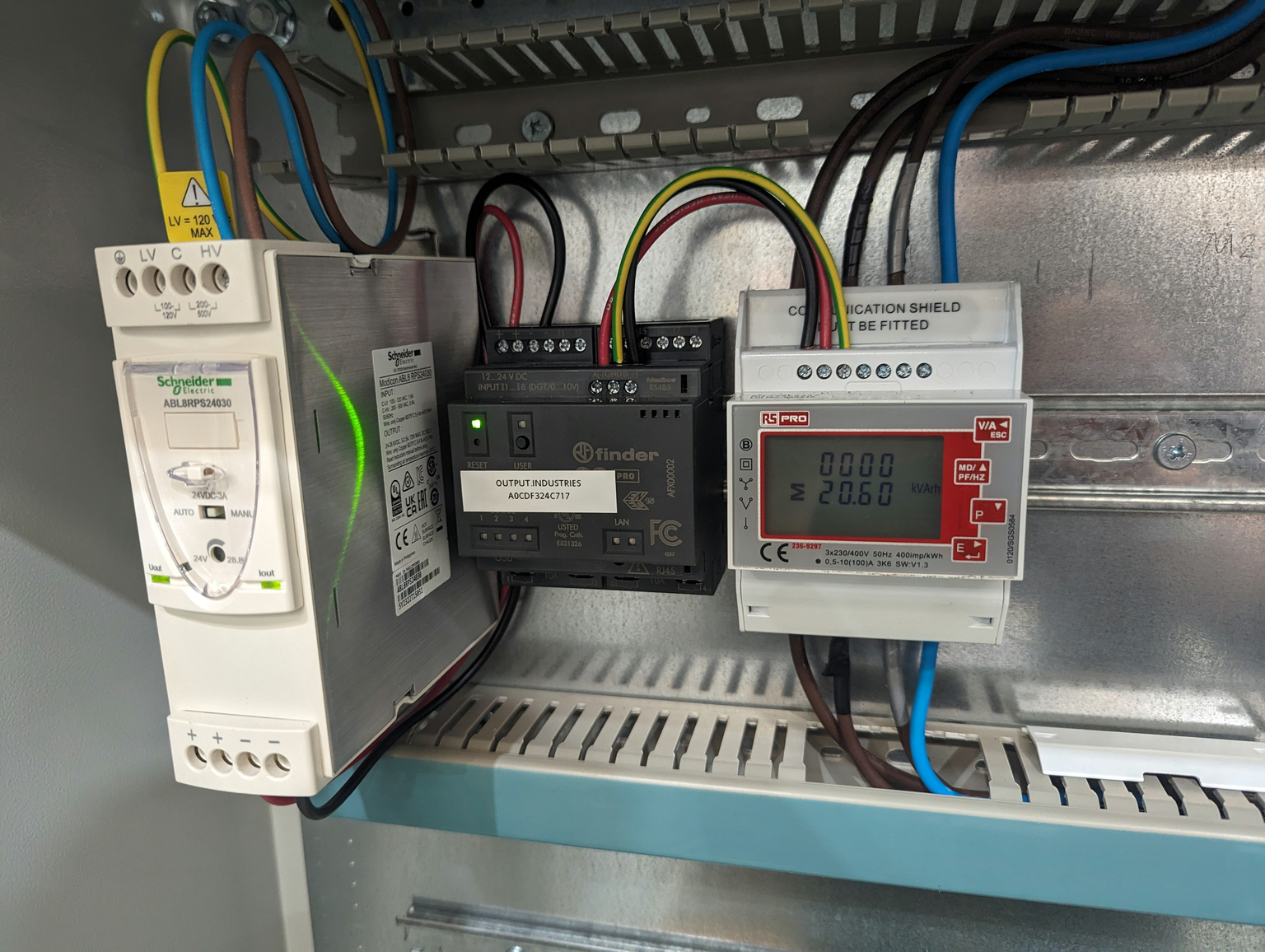

Typical Opta + Energy Meter Setup for Busroot
Typical Energy Monitoring Installations¶
Below are some common setups that cover most Energy Monitoring requirements. For full data sheets and purchasing links see the sub-page for each device.
Hardware sourced through OI has a 10% handling charge added.
| Capacity (Amps) | Number of Phases | Hardware Required | Price (exc. VAT) |
|---|---|---|---|
| 100 | 1 | RS Pro 2369293 | £66.00 |
| 100 | 3 | RS Pro 2369297 | £176.47 |
| 4000 | 3 | C Gavazzi 2247709 + Rogowski Coils 224405 | £166.18 £465.83 |
Note: Prices don't include Arduino OPTA devices which are also required. However up to 6 monitors can be connected to 1 OPTA device.
