# SKU

#### **Context:**

SKUs represent unique products tracked through production processes. A SKU (Stock Keeping Unit) is a unique identifier assigned to a specific product to allow Busroot to track production. When a schedule is created a SKU must be entered so the system knows which product is being produced.

#### **Importance:**

Proper SKU setup enables product-level analytics, traceability, cycle time targeting, and output reporting—affecting dashboards, root cause analysis, and KPIs.

#### Setup:

Enter all SKUs (products) and their cycle times via Admin > SKU. For many SKUs, you can import them with a template for efficiency. Accurate cycle times and grouping are crucial for all metrics and schedule management.

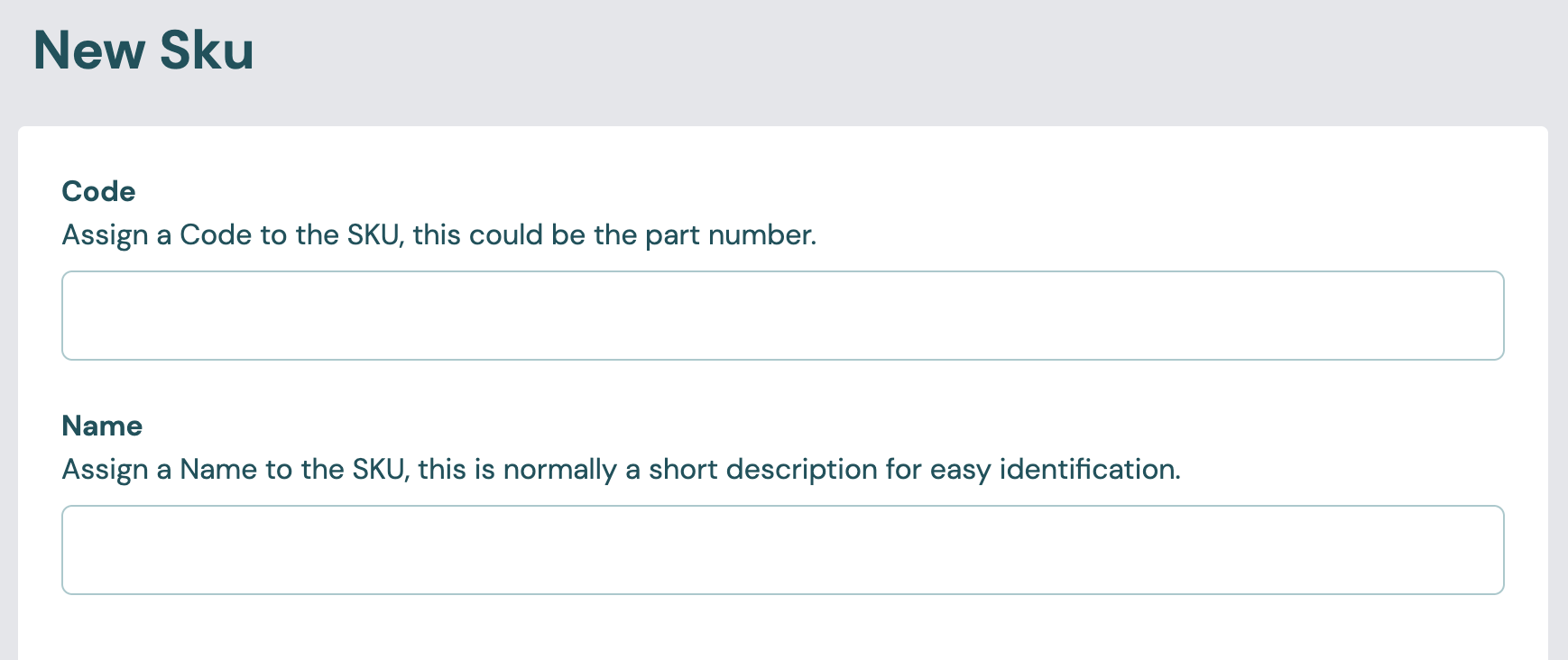

## SKU SETTINGS <a href="#sku-settings" id="sku-settings"></a>

Once you have entered and saved a code (anywhere across Busroot) this cannot be changed. The name of the SKU can be edited&#x20;

<figure><img src="/files/lJof9dR5l0Xr3JqCK4Bj" alt=""><figcaption></figcaption></figure>

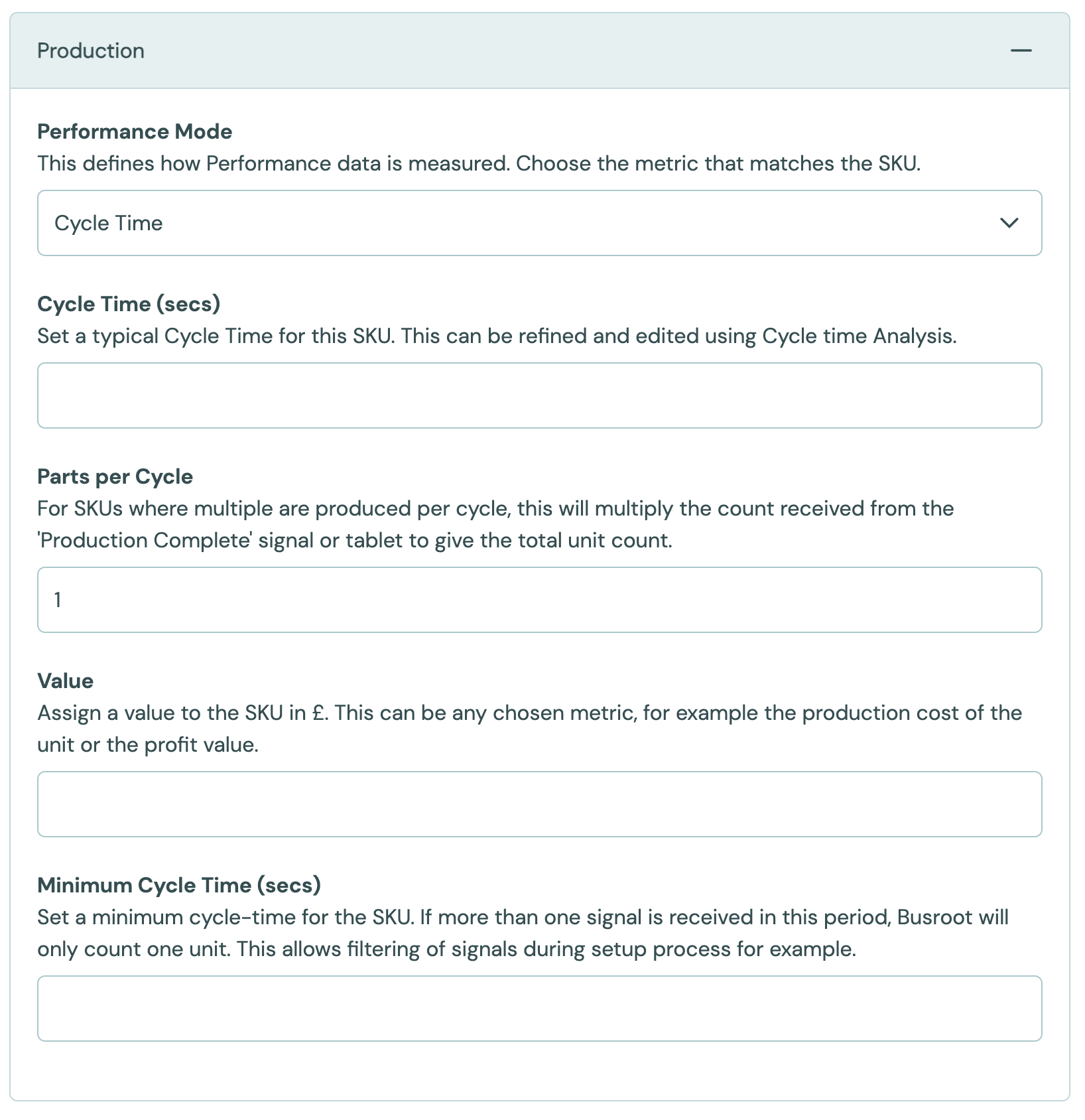

#### PRODUCTION  <a href="#performance-mode" id="performance-mode"></a>

<figure><img src="/files/SaTXAgBr3CXXPCZBdoMR" alt=""><figcaption></figcaption></figure>

#### Performance Mode <a href="#performance-mode" id="performance-mode"></a>

This defines how Performance data is measured. Choose the metric that matches the SKU. Select how you want the SKU to be measured in cycle time, units/minute or units/hour.

#### **Parts per Cycle (PPC)**

For SKUs that are produced in multiples. The 'Production Complete' signal or input on table tablet will be multiplied by this value to give the total unit count.

#### **Value**

Set the value in £ of each unit or batch.&#x20;

#### **Instructions**

If you have an internal link to a process document you can include it here for the operator.

#### **Downtime Detection Cycle Time Multiplier**

When using 'Production Cycle' downtime detection mode, a duration based on the SKU cycle time is used to determine when a station should be considered stopped.

By default, this value is 150% of the cycle time. So for an SKU with a cycle time of 2 minutes, Busroot would consider the station stopped if no production has been observed after 3 minute.

Changing this multiplier to 2 (200%) would mean that downtime is not flagged until 4 minutes after the last observed production.

#### **Minimum Cycle Time**

Set a minimum cycle-time for the SKU. If more than one signal is received in this period, Busroot will only count one unit. This allows filtering of signals during setup process for example.

**Allow Use in Ad hoc Production Schedules**

Select whether the SKU will be available when creating Ad Hoc Schedules on the Operator Tablet.

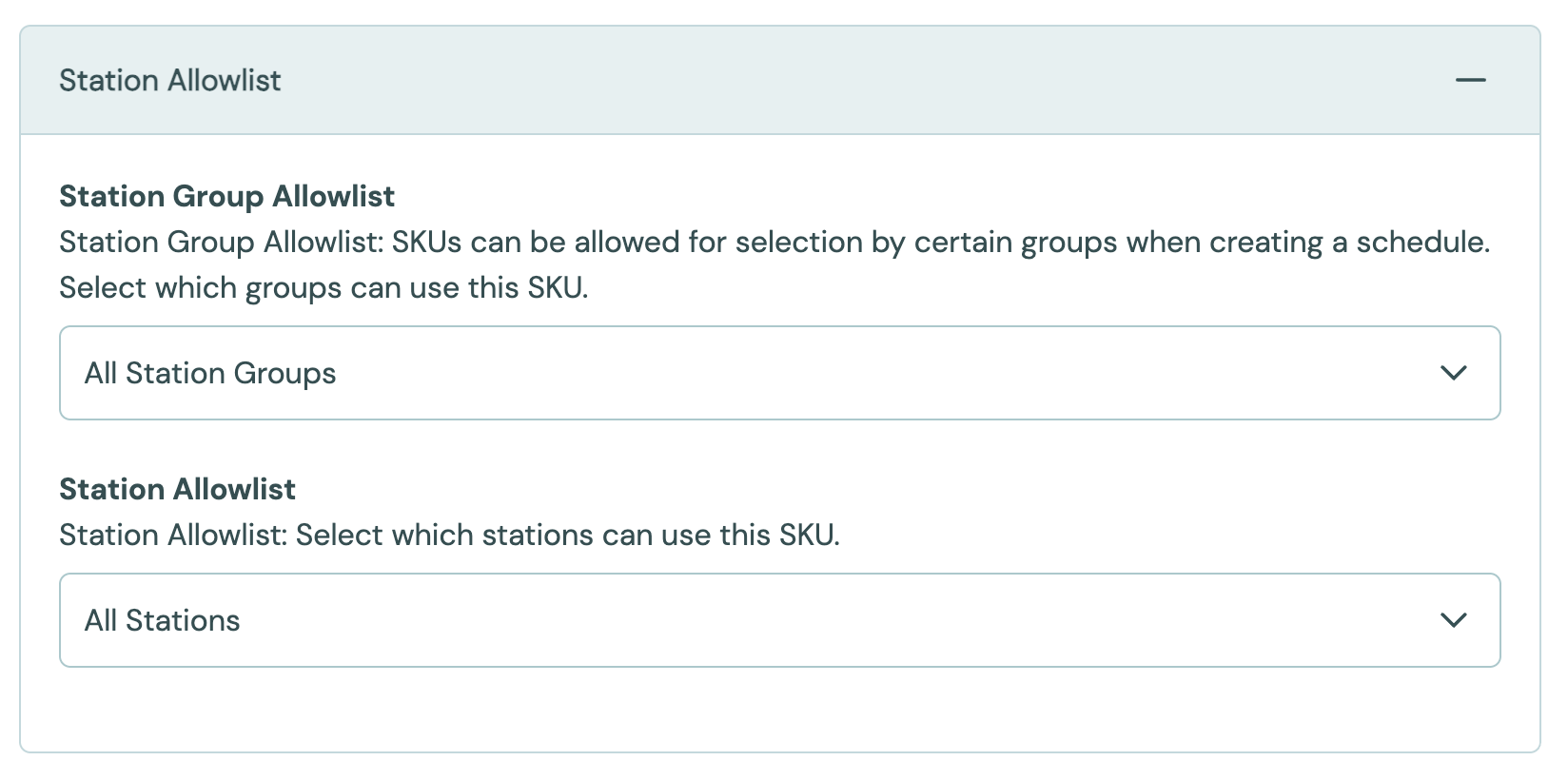

#### STATION ALLOWLIST&#x20;

<figure><img src="/files/a0OT9JPV6IBx3i5Nk4hL" alt=""><figcaption></figcaption></figure>

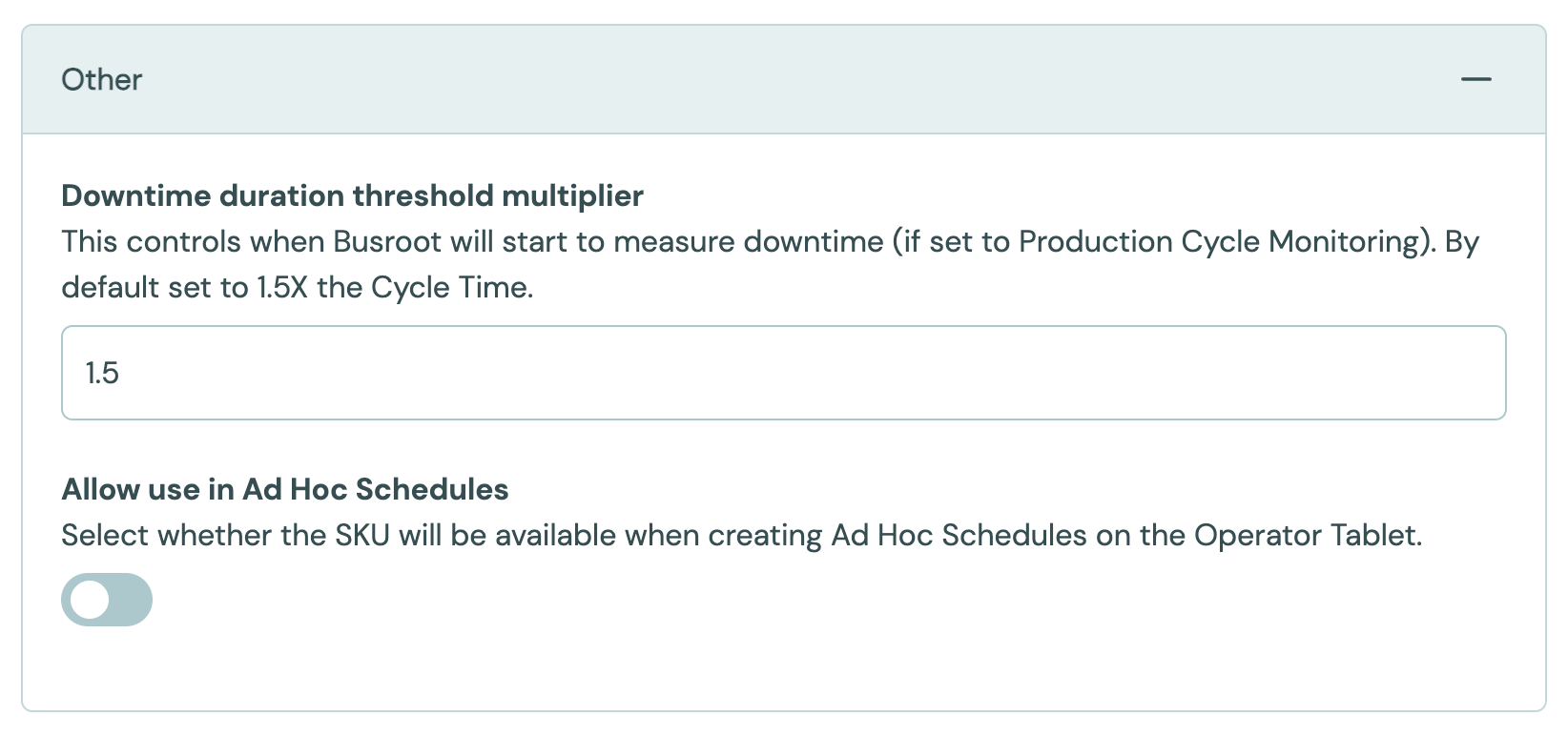

#### OTHER CONSIDERATIONS&#x20;

By default, the threshold is set to 1.5x (150%) of cycle time. e.g. If an SKU has a cycle time of 2 minutes, downtime will be assumed after 3 minutes from the last observed production output.

You can toggle on/off Ad Hoc schedules here. This allows operators with tablets to quick start a schedule from the tablet that has noe previously been planned. They will also need to end the schedule when completed, because you cannot enter an end time with this feature.&#x20;

<figure><img src="/files/4wQBO2pVFSGNFWeyp6MU" alt=""><figcaption></figcaption></figure>


---
